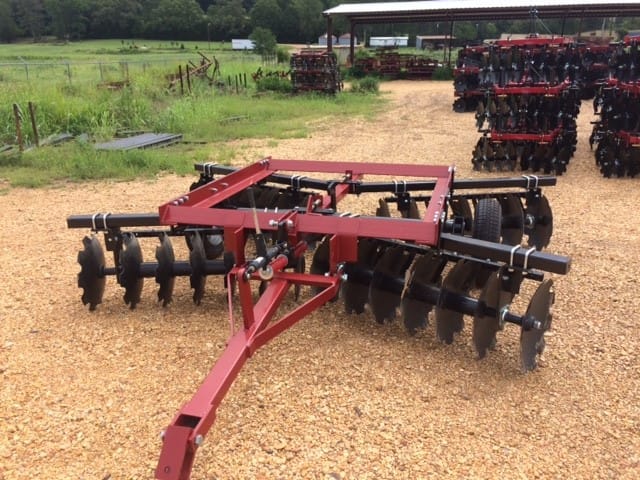

5″ x 5″ x ½” ANGLE MAIN FRAME
10 ½’ UNIT HAS 28 – 22″ BLADES, 4.5mm
9″ BLADE SPACINGS
SCRAPERS COME STANDARD
1 1/8″ GANG AXLES
GREASABLE BALL BEARINGS
DOUBLE SPRING LOADED LEVELING SYSTEM
SCREW TYPE GANG ADJUSTMENT
GANG ARMS ARE FABRICATED OF HIGH TEST TUBING TO PREVENT TWISTING
AND ARE MADE LONG ENOUGH TO ALLOW ADJUSTMENTS
NEW 15″ TIRES AND WHEELS
CYLINDER AND HOSE KIT INCLUDED
10 ½’ UNIT – APPROXIMATE WEIGHT: 2500 lbs.
