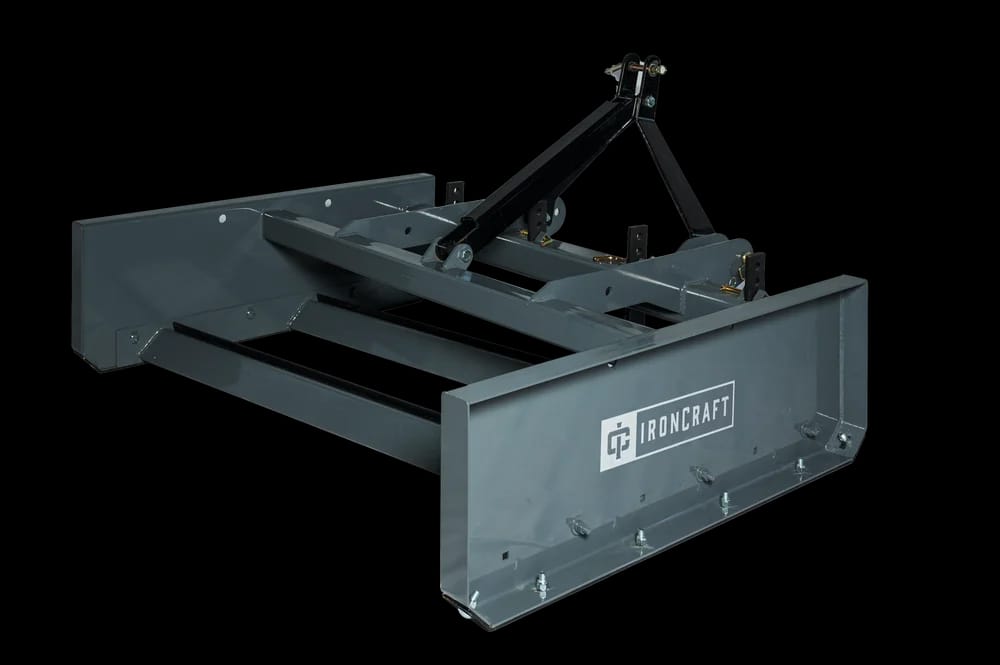

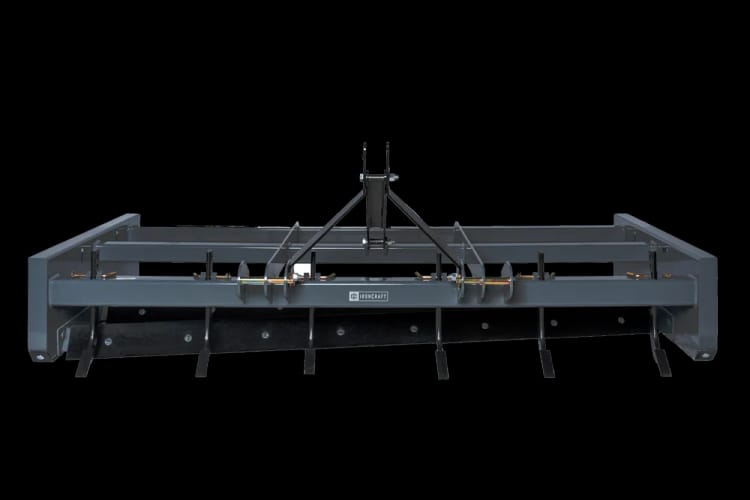

IRON CRAFT 5′ GRADER BLADES

Product Family 3600 Series
Product 3605
Description 5′ Standard Duty Dual Edge Grader
HP Required 25 – 55
Working Width 60″
Height 33-3/4″
Overall Width 65-5/8″
Overall Length 52-7/8″
# of Shanks 4
Scarifier Shank Construction 3 Position Heat Treated shank with dimpled on hardened tips
Shank Adjustment At grade level, 1-1/2″ and 3″ below grade level
A-frame Material 3/8″
Weight (lbs) 490 lbs
Side Panel Thickness 3/16″
Side Panel Height 15-11/16″
Side Panel Length 46-3/8″
Scarifier Support Tube Construction 4″ x 4″ x 1/4″
Rear Beam Construction 3″ x 3″ x 3/16″
Skid Shoes Replaceable 3/16″ x 2-3/4″ x 47-3/8″
Hitch Type Clevis Type
Hitch Cat 1
