Product Family 3700 Series
Product 3707

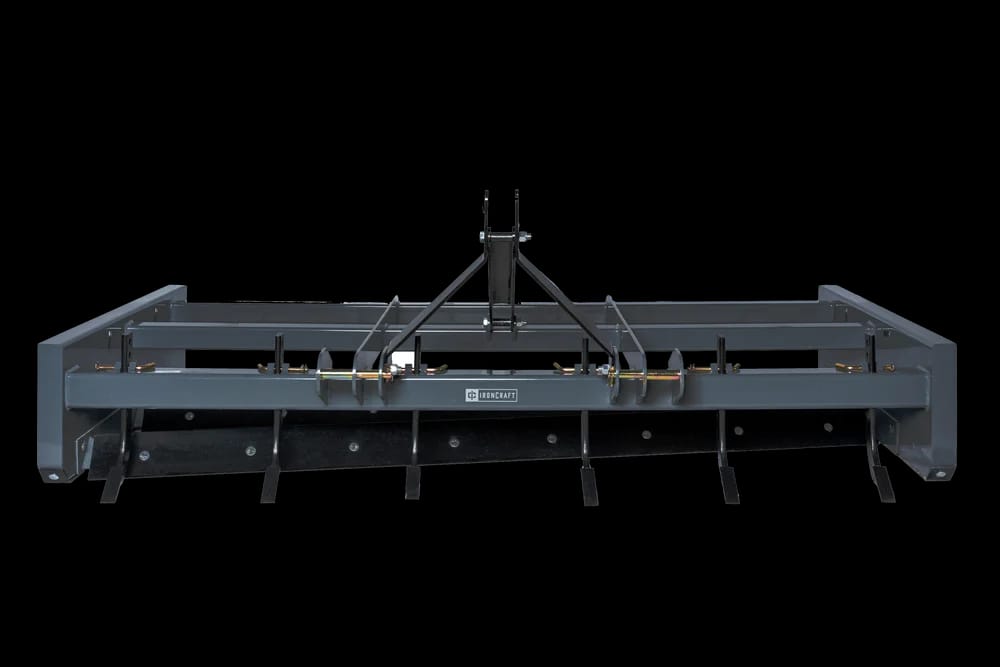

Description 7′ Heavy Duty Dual Edge Grader
HP Required 40 – 80
Working Width 84″
Height 33-3/4″
Overall Width 89-5/8″
Overall Length 58-1/2″
# of Shanks 6
Scarifier Shank Construction 3 Position Heat Treated shank with dimpled on hardened tips
Shank Adjustment At grade level, 1-1/2″ and 3″ below grade level
A-frame Material 3/8″
Weight (lbs) 700 lbs
Side Panel Thickness 3/16″
Side Panel Height 15-11/16″
Side Panel Length 52-3/8″
Scarifier Support Tube Construction 4/” x 4″ x 1/4″
Rear Beam Construction Two Beams 3″ x 3″ x 3/16″ spaced 21-1/8″ apart
Skid Shoes Replaceable 3/16″ x 2-3/4″ x 53-9/16″
Hitch Type Clevis Type
Hitch Cat 1 & 2
