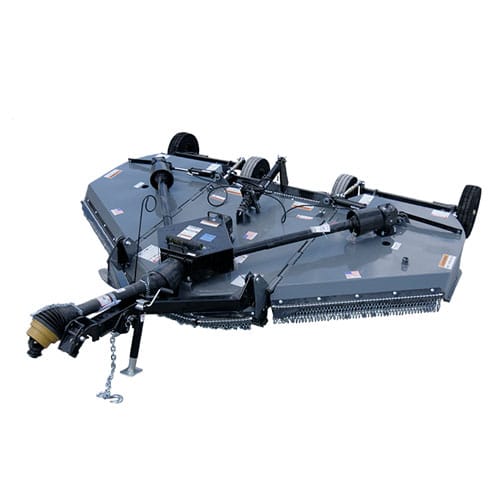

IRON CRAFT 12′ ROTARY CUTTER

Working Width 144 in.
Width 151 in.
Length (with wheels): 158 in.
Weight 2630 lb.
Recommended HP (PTO): 35 HP (Gear Drive Trans)
Recommended Minimum PTO HP: 35 HP (Gear Drive Trans)
Hitch: Swivel Clevis
Deck Thickness: 10 Ga
Side Skit Material: 3/16″
Suspension: Single Spring
Outboard Gearbox Power Rating: 75 HP
Splitter Gearbox Power Rating: 175 HP
Gearbox RPM: 540 RPM
Blades: 1/2″ X 3″ w/ Lift
Blade Tip Speed: 15,657 FPM
Blade Overlap: 3/162 Formed Plate w/ 3/4″ X 20″ Blade Bar
Cut Width: 144″
Overall Width: 151″
Overall Length with wheels: 158″
Tongue Weight: 759 lbs
Overall Weight: 2630 lbs
Cut Height: 1-1/2″-12″
Cutting Capacity: Up to 2″
Input PTO: ASAE Cat 5 Constant Velocity
Wing Drive PTO: ASAE Cat 4 w/ Slip Clutch
Skid Shoes: Replaceable
Chain Shields: Single Row Chain Shields Standard
Towing Safety Chain: Standard
Warranty: 5 Year Limited
Wheel Type: (Standard): 5 Lug Laminated; (Optional): Used Aircraft Tires
