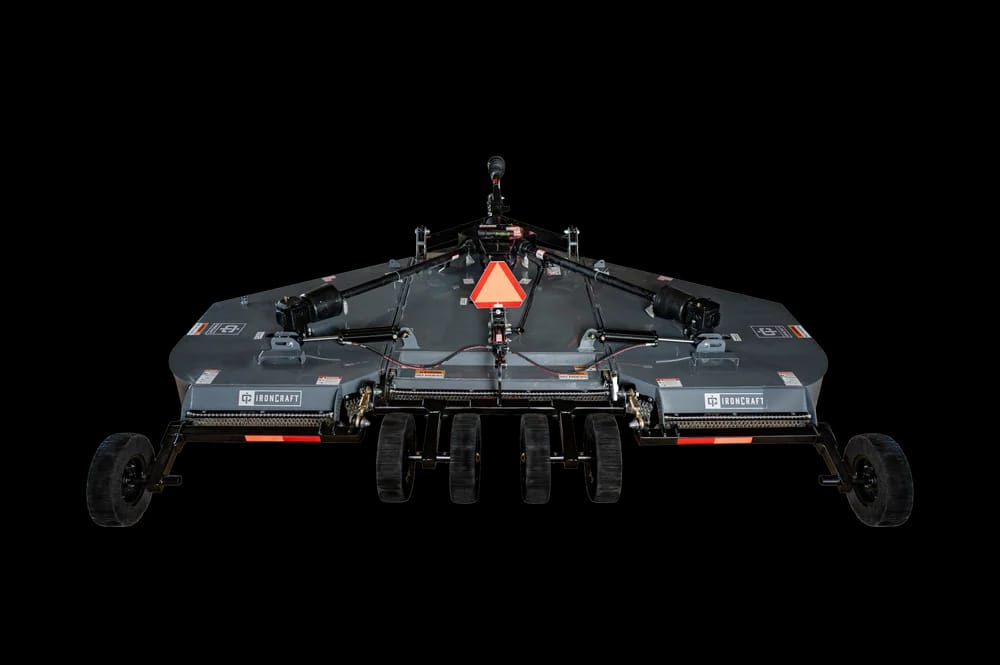

IRON CRAFT 15′ ROTARY CUTTER

Product Family 2515 Series
Product 2515
Description 15′ Medium Duty Flex Wing Rotary Cutter
RPM 540 or 1000
HP Required 50 minimum PTO
Working Width 180″
Overall Width 188″
Overall Length 186″
Transport Width 90″
Transport Height 83″ – 87″
Tongue Weight 1500 lbs
Weight (lbs) 4500 lbs. w/ 6-26″ laminated tires
Cutting Height 2″ to 15″
Cutting Capacity 2-1/2″
Deck Thickness 10 GA
Height Adjustment Hydraulic Cylinder
Wing Adjustments Heavy DutyTurnbuckle
Jack Stand Standard
Side Bands 1/4″ x 13-1/2″
Suspension 1 Heavy Duty Spring
Skid Shoes Replaceable
PTO Drive Shaft ASAE CAT 6
Wing Drive PTO ASAE CAT 4
Driveline Protection Slip Clutch
Blade Holder Round Pan
Gearbox Rating 235 HP
Outboard Gearbox Rating 190 HP
Wing Flex 22 Degrees Down to 88 Degrees Up
Wing Free Float 22 Degrees Down to 45 Degrees Up
Blades 1/2″ x 4″ Uplift
Blade Overlap 6″
Output Shaft Diameter 2″
Wheel Type 20″ or 26″ Laminated, 26″ Foam Filled, or 29″ Pneumatic
Hitch Type Swivel Pivot Self Leveling
Gearbox Warranty 5 year limited
Safety Tow Chain Standard
Guarding Options Single Row Chains Standard
FPM 17135
